Beskrivning

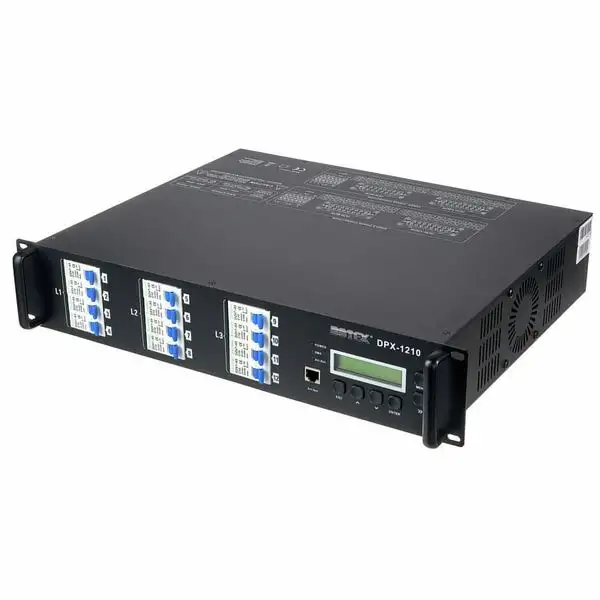

12-Channel dimmer with multipin outputs
- Art-Net and DMX capable
- Integrated DMX recorder for recording and storing up to 99 static scenes
- Scenes can be played as a chase in a loop with an adjustable fade time
- Live display for status of dimmer channels
- Definable DMX and ArtNet fail mode with blackout, hold and selectable scene
- Selectable control signal (Art-Net / DMX) per channel
- Silent mode for noise-sensitive environments
- Dimmer curve (linear / square) or switch mode selectable per channel
- Freely configurable soft patch
- Manual control via display and buttons on the device
- Output power: 10 A / channel (2.3 kW)
- Output: 2x 16-pin multipin
- Control via DMX and Art-Net
- DMX input and output: XLR 3-pin and 5-pin
- Art-Net input: RJ45 (front side)
- Current input: screw terminals
- Power supply: three-phase 400 V
- Dimensions (housing): 482 x 89 x 379 mm
- Installation depth: 380 mm
- Design: 19″/ 2U
- Weight: 15 kg
30 30 dagar öppet köp 3 3 års Thomann garanti
- Tillgänglig sedanFebruari 2020
- Artikelnummer 469657
- försäljningsenhet1 Styck
- Control Of Par´s (Dimmer) 12
- Sockets 16 pol. Multipin
- Mode of Action Leading Edge
